 Supply data:
Sheet size up to 1.00 mm:
1,200 x 1,200 mm
Sheet size from 1.50 mm
1,500 x 1,500 mm
Available thickness:
1.00 / 1.50 / 2.00 / 3.00
mm |
Compressible high performance gasketing material based on modified
PTFE filled with hollowglass microspheres. The minimized creep and
cold flow is the distinguished advantage compared to conventional
PTFE products.
novaflon 100 is the reliable sealing solution wherever
lower bolt loads occur e.g. with glass lined flanges or gfk plastic
equipment.
Excellent easy removing properties. Eliminates downtime during
shutdowns. novaflon 100 saves money and increases your margins of
afety. Its superior media resistance, against most aggressive acids
and alkalines (pH 0-14) is the reason that novaflon 100 is the product
for the chemical industry world-wide. It fulfills the strict German
fugitive emissions regulation TA-Luft and makes thus its contribution
for a clean environment for future generations.
Temperature range from ?210°C (-350°F) up to + 260°C
(500°F).
Approvals:
 FDA

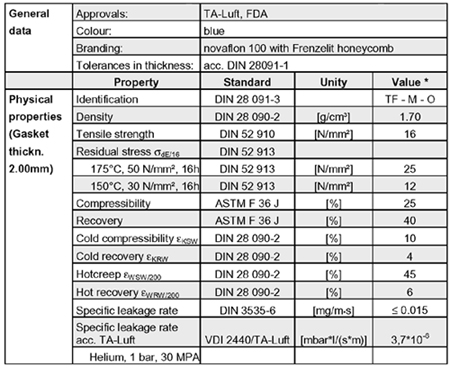

Technical data - preliminary:
For non-standard sizes, please consult factory.
Important Note to Puchaser:Values shown are typical and are not
to be used for specifications.
All data is subject to change
without notice. Before using, the user should determine the suitability
of the product for its intended
use, and the user assumes all
risk and liability in connection therewith. Specifications subject
to change without notice. |
novaflon 100 General Purpose Gasketing
